• (2) front/rear pwr points
• (3) grab handles
• (4) color-keyed coat hooks
• (4) load floor tie-down hooks
• 4-line message center-inc: outside temp
• 50/50 manual fold-flat 3rd row seat
• 60/40 split-folding 2nd row seat w/recline
• Accessory delay for windows & audio
• Air conditioning w/dual zone automatic temperature control & auxiliary climate control
• Audiophile 290-watt AM/FM stereo-inc: 6-disc in-dash CD/MP3 player, subwoofer, audio input jack
• Cargo area center dome lamp
• Cargo management system
• Center dome lamp w/1st & 2nd row map lights
• Color-keyed cloth sunvisors w/illuminated visor vanity mirrors
• Color-keyed leather-wrapped steering wheel w/audio & climate controls
• Electrochromic rearview mirror
• Front/rear carpeted floor mats
• High series floor console w/leather-wrapped floor shift handle & wrapped arm rest
• Homelink universal home remote
• Illuminated entry
• Illuminated Glove Box
• Keyless entry pad
• Leather-trimmed heated low-back front sport bucket seats-inc: 10-way pwr driver seat w/memory, 6-way pwr passenger seat, pwr driver/manual passenger lumbar supports
• Overhead console
• Pwr adjustable pedals w/memory
• Pwr door locks
• Pwr windows-inc: one-touch-down driver window
• Rear window defogger
• Remote keyless entry-inc: (2) key fobs
• Reverse sensing-inc: radar backup aid
• SecuriLock/immobilizer anti-theft system
• Speed control
• SYNC media system-inc: Bluetooth® capability, voice-activated control capability, USB ports, redundant controls
• Tilt steering column
• Tire pressure monitoring system
• Unique woodgrain accents
• Whip style fender-mounted antenna

• 130 amp alternator
• 18" chrome-clad aluminum wheels
• 3.55 axle ratio
• 4-wheel anti-lock brakes
• 4-wheel drive w/ControlTrak
• 4-wheel independent suspension
• 72 amp/hr maintenance-free battery w/battery saver feature
• AdvanceTrac w/Roll Stability Control (RSC)
• Class II trailer tow prep w/4-pin wire harness
• Full-size spare tire w/steel wheel
• Jack & jack tools
• One-touch ignition switch
• P235/65R18 all-season OWL tires
• Pwr 4-wheel disc brakes
• Pwr rack & pinion steering

• 2nd generation driver & front passenger airbags & side seat airbags
• 4-wheel anti-lock brakes w/brake shift interlock
• Adaptive energy-absorbing steering column
• AdvanceTrac w/Roll Stability Control (RSC)
• BeltMinder feature
• Child safety rear door locks
• Front passenger sensing system
• LATCH system on rear outboard seat locations
• Safety canopy air curtain system
• Seat belts-inc: pretensioners, energy management system, adjustable height in 1st row

4.6L SOHC SEFI 24-VALVE V8 ENGINE

• (STD)

• Traction Control
• Stability Control
• Four Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Chrome Wheels
• Power Steering
• 4-Wheel Disc Brakes
• ABS
• Running Boards/Side Steps
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Power Driver Seat
• Power Passenger Seat
• Leather Seats
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Pass-Through Rear Seat
• Rear Bench Seat
• 3rd Row Seat
• Floor Mats
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Adjustable Steering Wheel
• Tire Pressure Monitor
• Universal Garage Door Opener
• Power Windows
• Power Door Locks
• Cruise Control
• Keyless Entry
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Immobilizer
• Rear Parking Aid
• Adjustable Pedals
• Climate Control
• Multi-Zone A/C
• A/C
• Rear A/C
• Rear Defrost
• AM/FM Stereo
• CD Changer
• CD Player
• Premium Sound System
• MP3 Capability
• Auxiliary Audio Input
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Woodgrain Interior Trim
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Power Outlet
• Front Reading Lamps
• Rear Reading Lamps
• ABS
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Child Safety Locks
• Traction Control
• Stability Control

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.01 x 0.43
• Rear Brake Rotor Diam x Thickness (in): 11.85 x 0.39
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Length : Floor to Seat 2 (in)
• Cargo Area Length : Floor to Seat 3 (in)
• Cargo Area Length : Floor to Seat 4 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume to Seat 1 (ft³): 83.7
• Cargo Volume to Seat 2 (ft³): 43.9
• Cargo Volume to Seat 3 (ft³): 13.6
• Cooling System
• Total Cooling System Capacity (qts): 18.5
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Exterior Dimensions
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Ground to Top of Load Floor (in): 31.4
• Height, Overall (in): 72.8
• Length, Overall w/rear bumper (in): 193.4
• Overhang, Front (in): 35.4
• Overhang, Rear w/bumper (in): 44.3
• Rear Door Opening Height (in): 33.7
• Wheelbase (in): 113.7
• Width, Max w/o mirrors (in): 73.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.5
• Fuel Tank Location: Midship
• Interior Dimensions
• Front Head Room (in): 39.8
• Front Hip Room (in): 55.4
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 59.0
• Passenger Capacity: 7
• Second Head Room (in): 38.7
• Second Hip Room (in): 55.5
• Second Leg Room (in): 36.9
• Second Shoulder Room (in): 58.9
• Third Head Room (in): 37.4
• Third Hip Room (in): 45.3
• Third Leg Room (in): 34.9
• Third Shoulder Room (in): 53.1
• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 19
• Steering
• Steering Ratio (:1), On Center: 18.9
• Steering Type: Power Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 36.8
• Turning Diameter - Wall to Wall (ft): 38.4
• Summary
• Body Style: 4 Door

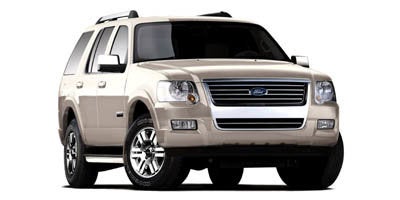

• Vehicle Name: Ford Explorer
• Suspension
• Axle Capacity - Front (lbs): 3240
• Axle Capacity - Rear (lbs): 3600
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Axle Type - Front: Ford SLA
• Axle Type - Rear: Ford SLA
• Shock Absorber Diameter - Front (mm): 32.0
• Shock Absorber Diameter - Rear (mm): 32.0
• Spring Capacity - Front (lbs): 2470
• Spring Capacity - Rear (lbs): 2200
• Stabilizer Bar Diameter - Front (in): 1.34
• Stabilizer Bar Diameter - Rear (in): 0.77
• Suspension Type - Front: Independent SLA
• Suspension Type - Rear: Independent SLA
• Tires
• Front Tire Capacity (lbs): 1700
• Front Tire Order Code: T5N
• Front Tire Size: P235/65R18
• Rear Tire Capacity (lbs): 1700
• Rear Tire Order Code: T5N
• Rear Tire Size: P235/65R18
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 1700
• Spare Tire Order Code: T5N
• Spare Tire Size: P235/65R18
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Vehicle
• Rear Door Type: Liftgate
• Weight Information
• Curb Weight - Front (lbs): 2553
• Curb Weight - Rear (lbs): 2149
• Gross Axle Wt Rating - Front (lbs): 2960
• Gross Axle Wt Rating - Rear (lbs): 3400
• Gross Combined Wt Rating (lbs): 8500
• Gross Vehicle Weight Rating Cap (lbs): 6280
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 18 x 7.5
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 18 x 7.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 18 x 7.5
