• Assist handles-inc: (1) front passenger, (2) second row
• Coat hooks-inc: (2) second row, (2) 3rd row
• Color-keyed cloth headliner
• Concealed antenna in RH quarter glass
• Cruise control
• Front & rear door map pockets
• Head restraints at all outboard seating positions
• Locking glove box
• Manual Air Conditioning
• Pwr accessory delay
• Pwr adjustable accelerator/brake pedals
• Pwr door locks
• Pwr windows w/driver one-touch-down
• Rear window defroster
• SecuriLock passive anti-theft system
• Theatre dimming feature
• Tilt steering column

• (5) P265/70R17 all-season SBR BSW tires
• 130-amp alternator
• 28.0 gallon fuel tank
• 3350# capacity front axle/4128# capacity rear axle
• 4-wheel anti-lock braking system
• 72 amp/hr (650-CCA) maintenance-free battery w/battery saver feature
• Double wishbone front suspension w/coil-over shock
• Front/rear stabilizer bars
• Gas-charged shock absorbers
• Independent rear suspension
• Limited slip rear axle
• Pwr 4-wheel disc brakes
• Rear wheel drive
• Steel spare wheel
• Underbody-mounted full size BSW spare tire w/crank down feature
• Variable assist pwr rack & pinion steering

• 4-wheel anti-lock braking system
• Child-proof rear door locks
• Color-keyed lap/shoulder safety belts w/Beltminder system-inc: buckle pretensioners, load-limiting retractors
• Driver & front passenger airbags-inc: driver seat position & load severity sensing
• Front/2nd row adjustable shoulder belt height
• Front/rear outboard head restraints
• Side intrusion door beams

5.4L (330) SOHC SEFI V8 "TRITON" ENGINE

• (STD)

• Rear Wheel Drive
• Locking/Limited Slip Differential
• Tow Hitch
• Tires - Front All-Season
• Tires - Rear All-Season
• Power Steering
• 4-Wheel Disc Brakes
• Luggage Rack
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Variable Speed Intermittent Wipers
• Power Driver Seat
• Rear Bench Seat
• Rear A/C
• Adjustable Steering Wheel
• Adjustable Pedals
• Power Windows
• Cruise Control
• Immobilizer
• Rear Defrost
• AM/FM Stereo
• Cassette
• CD Player
• Passenger Vanity Mirror
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 14
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3150
• Gross Axle Wt Rating - Rear (lbs): 4128
• Curb Weight - Front (lbs): 2661
• Curb Weight - Rear (lbs): 2790
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 890
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Coil Spring
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 4128
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Independent
• Axle Capacity - Front (lbs): 3350
• Axle Capacity - Rear (lbs): 4128
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 34.93
• Shock Absorber Diameter - Rear (mm): 34.93
• Stabilizer Bar Diameter - Front (in): 1.34
• Stabilizer Bar Diameter - Rear (in): 0.83
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.9
• Tires
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2304
• Rear Tire Capacity (lbs): 2304
• Spare Tire Capacity (lbs): 2304
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Spare: 654
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.5
• Turning Diameter - Curb to Curb (ft): 39.2
• Turning Diameter - Wall to Wall (ft): 40.5
• Frame
• Frame Type: Front-to-Rear Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/rear bumper (in): 205.8
• Width, Max w/o mirrors (in): 78.7
• Height, Overall (in): 77.6
• Overhang, Front (in): 38.6
• Overhang, Rear w/bumper (in): 48.2
• Ground to Top of Load Floor (in): 35.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 87.2
• Cargo Area Length @ Floor to Seat 2 (in): 52.5
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 110.4
• Cargo Volume to Seat 2 (ft³): 60.9
• Cargo Volume to Seat 3 (ft³): 20.7
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 39.7
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 63.4
• Front Hip Room (in): 63.0
• Second Head Room (in): 39.8
• Second Leg Room (in): 38.7
• Second Shoulder Room (in): 64.3
• Second Hip Room (in): 62.4
• Third Head Room (in): 38.2
• Third Leg Room (in): 36.3
• Third Shoulder Room (in): 60.1
• Third Hip Room (in): 54.5
• Summary

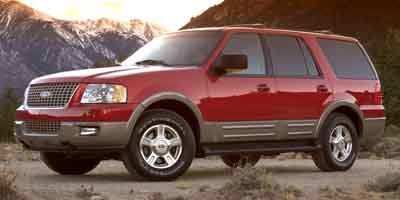

• Vehicle Name: Ford Expedition
• Body Style: 4 Door
• Body Code: 119" WB
